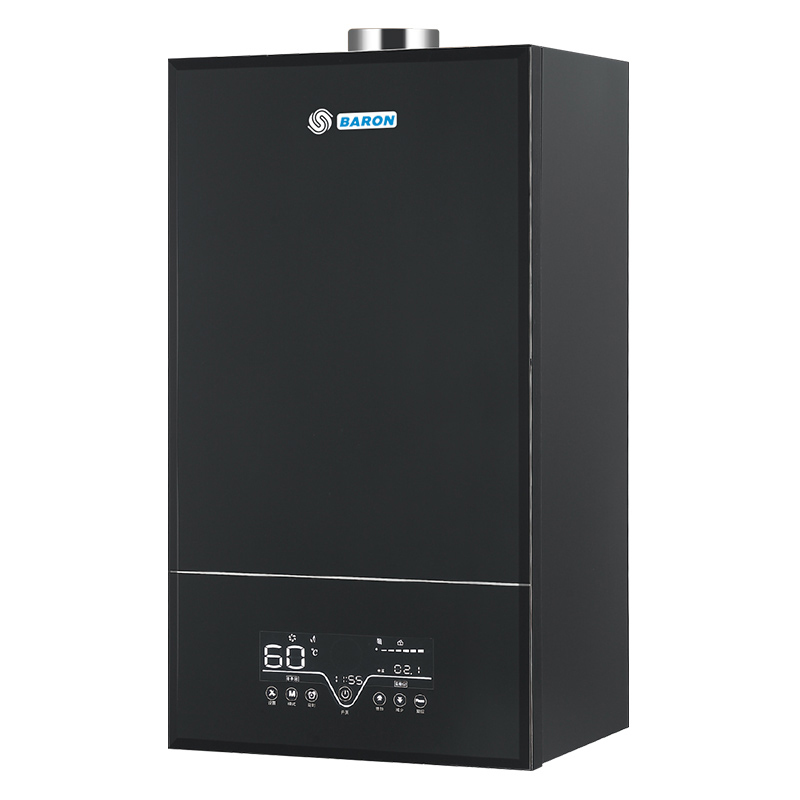

Plate Heat Exchanger Type Wall Hung Combi Gas Boiler

Plate Heat Exchanger Type High Quality Wall Hung Combi Gas Boiler

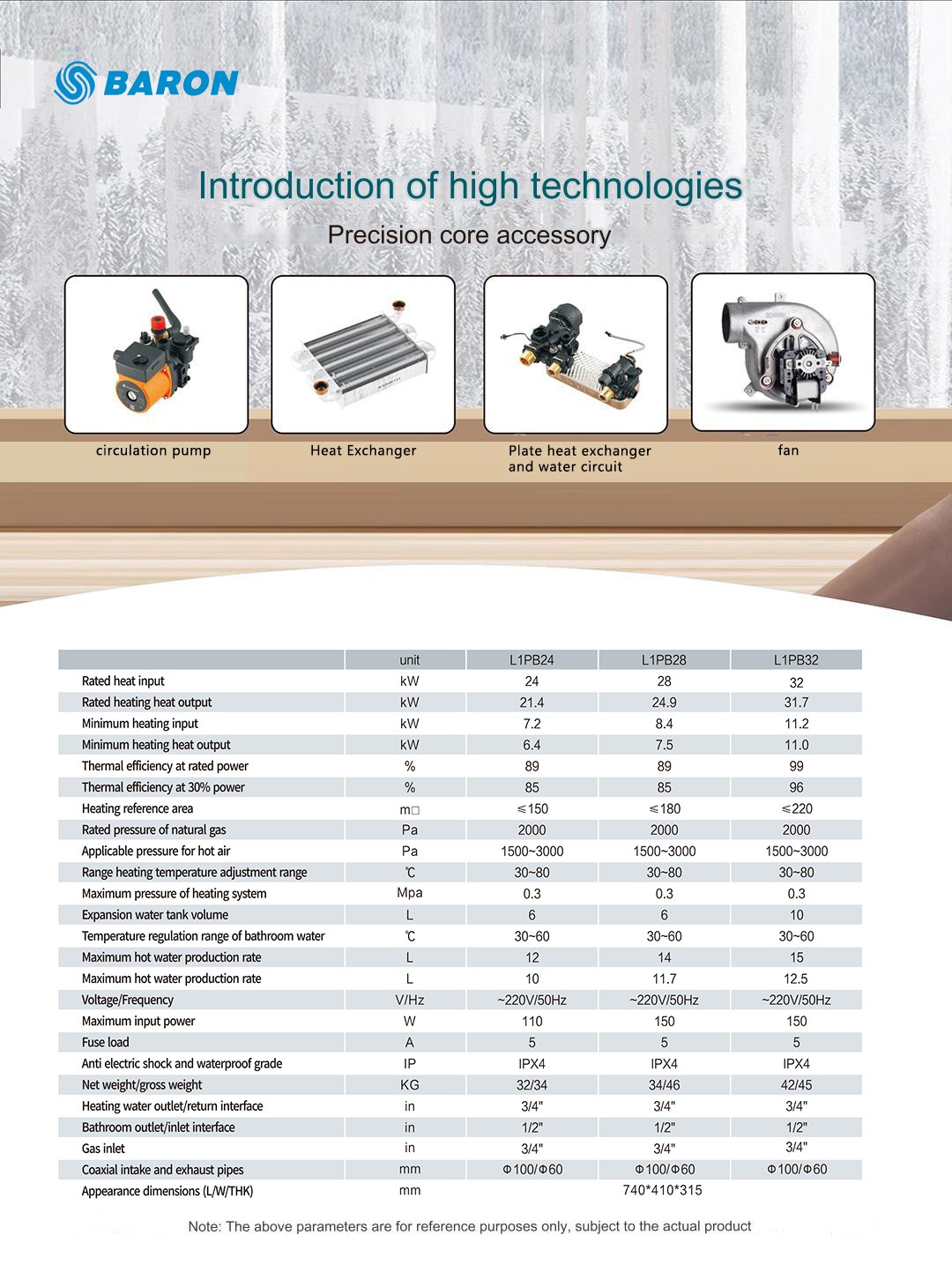

Gas wall-hung boiler parameters

¤Working environment temperature: -20~80 degrees.

¤Working relative humidity: at least 85% (room temperature is 25°C).

¤Heating temperature range: -25~80 degrees.

¤The composition of the electrical control panel: operation indication panel and main control panel.

¤Work interface markings refer to the actual product, the digital display is a full bright white LED display. No trace of the background color of the characters is visible on the digital screen.

¤Wi-Fi function (please select one of the "automatic positioning/GRS positioning and data transmission control" functions when using it): Reserved port.

Plate exchangeable gas wall-hung boiler

Using the secondary heat exchange function of the main heat exchanger + plate heat exchanger, the bathing water temperature is more stable and the piping system is not prone to scaling, the temperature rises quickly, the thermal efficiency is high, and the air consumption is low.

Gas wall-hung boiler features:

1. Multi-function LCD display: can display various information such as system temperature, pressure and operating status.

2. Intelligent Internet of Things: Remote intelligent control via mobile phone WIFI to adjust the heating status of your home anytime and anywhere.

3. Quick constant temperature: water comes out at a constant temperature, saying goodbye to hot and cold. The water temperature is constant and you can enjoy comfort.

4. Low pressure start: the minimum pressure is only 0.5bar.

5. Imported accessories: Use imported accessories from Europe, which are durable and reliable.

6. Multiple protection: safe and stable, worry-free operation, unique anti-freeze protection detection device.

7. Silent design: operating noise is as low as 45 decibels.

8. Negative pressure combustion: exhaust gas is forced out of the room to ensure indoor air cleanliness.
